Hướng dẫn chi tiết code ảnh lật bằng 3D animation trong WPF C#: bước từng bước kèm mã nguồn mẫu, xử lý transform & storyboard, cùng mẹo tối ưu hiệu suất — tài liệu hữu ích cho developer wpf muốn tạo hiệu ứng lật ảnh chuyên nghiệp.

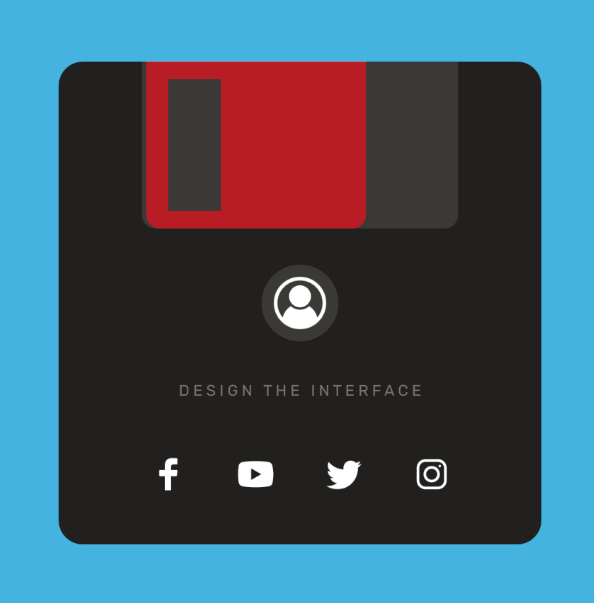

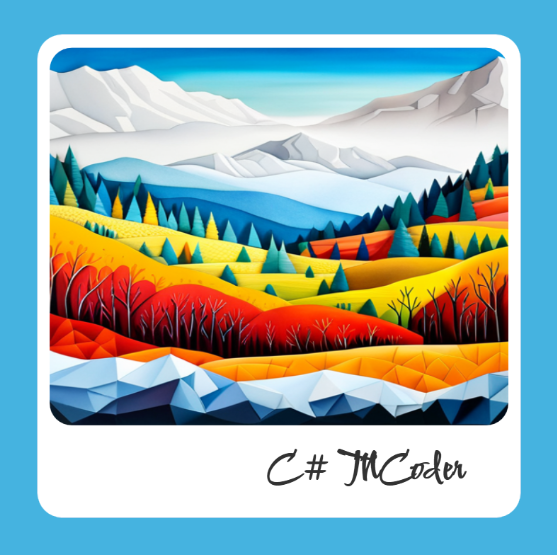

Giới thiệu một số hình ảnh form
1. Ý tưởng thực hiện
Hiệu ứng lật ảnh dựa trên 3D Rotation với Storyboard Animation:
- Sử dụng
Viewport3Dđể dựng không gian 3D. - Áp dụng
AxisAngleRotation3Dxoay theo trục Y. - Tạo Storyboard điều khiển quá trình xoay từ 0° → 180°.
- Khi xoay qua 90°, thay đổi hình ảnh từ ảnh trước sang ảnh sau.
2. Chuẩn bị giao diện XAML
Chúng ta cần một Viewport3D để hiển thị hình ảnh và ánh sáng cơ bản:
<Window x:Class="Flip_Card.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:UserControl="clr-namespace:Flip_Card"
mc:Ignorable="d"
Title="MainWindow"
Height="800"
Width="800"
WindowStyle="None"
WindowState="Maximized">
<Grid Background="#45B3E0">
<!--// Define a 3D viewport //-->
<Viewport3D Height="800"
Width="800">
<!--// Set the camera for the viewport //-->
<Viewport3D.Camera>
<PerspectiveCamera Position="0,0,4" />
</Viewport3D.Camera>
<!--// Define a 2D visual element within the 3D viewport //-->
<Viewport2DVisual3D x:Name="ViewPort">
<!--// Apply a transformation to the 2D visual element //-->
<Viewport2DVisual3D.Transform>
<RotateTransform3D>
<RotateTransform3D.Rotation>
<AxisAngleRotation3D Angle="0"
Axis="0,1,0" />
</RotateTransform3D.Rotation>
</RotateTransform3D>
</Viewport2DVisual3D.Transform>
<!--// Define the geometry of the 2D visual element //-->
<Viewport2DVisual3D.Geometry>
<MeshGeometry3D Positions="-1,1,0 -1,-1,0 1,-1,0 1,1,0"
TextureCoordinates="0,0 0,1 1,1 1,0"
TriangleIndices="0 1 2 0 2 3" />
</Viewport2DVisual3D.Geometry>
<!--// Set the material for the 2D visual element //-->
<Viewport2DVisual3D.Material>
<DiffuseMaterial Viewport2DVisual3D.IsVisualHostMaterial="True"
Brush="#FFFFFF" />
</Viewport2DVisual3D.Material>
<!--// Add a Toggle Button //-->
<ToggleButton x:Name="Flip_Card"
Cursor="Hand">
<!--// Toggle Button Style //-->
<ToggleButton.Style>
<Style TargetType="ToggleButton">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="ToggleButton">
<Border x:Name="border"
BorderThickness="0">
<ContentPresenter />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ToggleButton.Style>
<ToggleButton.Content>
<Grid>
<!--// Front //-->
<UserControl:FrontSide x:Name="Front_Side" />
<!--// Back //-->
<UserControl:BackSide x:Name="Back_Side"
Opacity="0" />
</Grid>
</ToggleButton.Content>
<!--// Toggle Button - Checked Event //-->
<ToggleButton.Triggers>
<EventTrigger RoutedEvent="ToggleButton.Checked">
<BeginStoryboard>
<!--// Front Side Animation //-->
<Storyboard>
<DoubleAnimation Storyboard.TargetName="Front_Side"
Storyboard.TargetProperty="(Image.Opacity)"
BeginTime="0:0:0.5"
Duration="0:0:0"
From="1.0"
To="0.0" />
</Storyboard>
</BeginStoryboard>
<!--// Back Side Animation //-->
<BeginStoryboard>
<Storyboard>
<DoubleAnimation Storyboard.TargetName="Back_Side"
Storyboard.TargetProperty="(Image.Opacity)"
BeginTime="0:0:0.5"
Duration="0:0:0"
From="0.0"
To="1.0" />
</Storyboard>
</BeginStoryboard>
<!--// Create a rotation animation to animate the rotation of the ViewPort //-->
<BeginStoryboard>
<Storyboard>
<Rotation3DAnimation Storyboard.TargetName="ViewPort"
Storyboard.TargetProperty="(Viewport2DVisual3D.Transform).(RotateTransform3D.Rotation)"
Duration="0:0:0.5"
BeginTime="0:0:0">
<!--// Set the initial rotation values //-->
<Rotation3DAnimation.From>
<AxisAngleRotation3D Angle="0"
Axis="0,1,0" />
</Rotation3DAnimation.From>
<!--// Set the final rotation values //-->
<Rotation3DAnimation.To>
<AxisAngleRotation3D Angle="90"
Axis="0,1,0" />
</Rotation3DAnimation.To>
</Rotation3DAnimation>
<Rotation3DAnimation Storyboard.TargetName="ViewPort"
Storyboard.TargetProperty="(Viewport2DVisual3D.Transform).(RotateTransform3D.Rotation)"
Duration="0:0:0.5"
BeginTime="0:0:0.5">
<Rotation3DAnimation.From>
<AxisAngleRotation3D Angle="-90"
Axis="0, 1, 0" />
</Rotation3DAnimation.From>
<Rotation3DAnimation.To>
<AxisAngleRotation3D Angle="0"
Axis="0, 1, 0" />
</Rotation3DAnimation.To>
</Rotation3DAnimation>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
<!--// Toggle Button - Unchecked Event //-->
<EventTrigger RoutedEvent="ToggleButton.Unchecked">
<BeginStoryboard>
<Storyboard>
<!--Back Side Animation-->
<DoubleAnimation Storyboard.TargetName="Back_Side"
Storyboard.TargetProperty="(Image.Opacity)"
BeginTime="0:0:0.5"
Duration="0:0:0"
From="1.0"
To="0.0" />
</Storyboard>
</BeginStoryboard>
<BeginStoryboard>
<Storyboard>
<!--Front Side Animation-->
<DoubleAnimation Storyboard.TargetName="Front_Side"
Storyboard.TargetProperty="(Image.Opacity)"
BeginTime="0:0:0.5"
Duration="0:0:0"
From="0.0"
To="1.0" />
</Storyboard>
</BeginStoryboard>
<BeginStoryboard>
<Storyboard>
<Rotation3DAnimation Storyboard.TargetName="ViewPort"
Storyboard.TargetProperty="(Viewport2DVisual3D.Transform).(RotateTransform3D.Rotation)"
Duration="0:0:0.5"
BeginTime="0:0:0">
<Rotation3DAnimation.From>
<AxisAngleRotation3D Angle="0"
Axis="0, 1, 0" />
</Rotation3DAnimation.From>
<Rotation3DAnimation.To>
<AxisAngleRotation3D Angle="-90"
Axis="0, 1, 0" />
</Rotation3DAnimation.To>
</Rotation3DAnimation>
<Rotation3DAnimation Storyboard.TargetName="ViewPort"
Storyboard.TargetProperty="(Viewport2DVisual3D.Transform).(RotateTransform3D.Rotation)"
Duration="0:0:0.5"
BeginTime="0:0:0.5">
<Rotation3DAnimation.From>
<AxisAngleRotation3D Angle="90"
Axis="0, 1, 0" />
</Rotation3DAnimation.From>
<Rotation3DAnimation.To>
<AxisAngleRotation3D Angle="0"
Axis="0, 1, 0" />
</Rotation3DAnimation.To>
</Rotation3DAnimation>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
</ToggleButton.Triggers>
</ToggleButton>
</Viewport2DVisual3D>
<!--// Create a ModelVisual3D element //-->
<ModelVisual3D>
<!--// Set the content of the ModelVisual3D //-->
<ModelVisual3D.Content>
<!--// Create a DirectionLight with a specific color and direction //-->
<DirectionalLight Color="#FFFFFF"
Direction="0,0,-1" />
</ModelVisual3D.Content>
</ModelVisual3D>
</Viewport3D>
<!--// Exit Button //-->
<Button x:Name="ExitBtn"
Cursor="Hand"
Style="{StaticResource ExitBtnStyle}"
Click="ExitBtn_Click" />
</Grid>
</Window>
2. FrontSide
<UserControl x:Class="Flip_Card.FrontSide"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:Flip_Card"
mc:Ignorable="d"
d:DesignHeight="300"
d:DesignWidth="300">
<Grid>
<!--// Background //-->
<Border Height="200"
Width="200"
CornerRadius="10">
<Border.Background>
<!--// Use a visual brush for the background //-->
<VisualBrush>
<VisualBrush.Visual>
<!--// Create a canvas to hold the visual elements //-->
<Canvas>
<!--// Front Side //-->
<Border x:Name="Front_Side"
Height="1100"
Width="1100"
Background="#FFFFFF"
Opacity="1">
<!--// Add Content //-->
<ContentControl Template="{StaticResource FrontSide_Content}" />
</Border>
</Canvas>
</VisualBrush.Visual>
</VisualBrush>
</Border.Background>
</Border>
</Grid>
</UserControl>
3. BackSide
<UserControl x:Class="Flip_Card.BackSide"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:Flip_Card"
mc:Ignorable="d"
d:DesignHeight="300"
d:DesignWidth="300">
<Grid>
<!--// Background //-->
<Border Height="200"
Width="200"
CornerRadius="10">
<Border.Background>
<!--// Use a visual brush for the background //-->
<VisualBrush>
<VisualBrush.Visual>
<!--// Create a canvas to hold the visual elements //-->
<Canvas>
<Border x:Name="Back_Side"
Height="1100"
Width="1100"
Opacity="1"
Background="#21201E">
<!--// Add Content //-->
<ContentControl Template="{StaticResource BackSide_Content}" />
</Border>
</Canvas>
</VisualBrush.Visual>
</VisualBrush>
</Border.Background>
</Border>
</Grid>
</UserControl>
3. Kết quả
Khi nhấn nút Flip Image, hình ảnh trong Viewport3D sẽ xoay quanh trục Y, tạo hiệu ứng lật ảnh 3D mượt mà. Bạn có thể mở rộng:
- Đổi ảnh khi xoay qua 90° để có hiệu ứng trước – sau.
- Thêm nhiều ảnh để tạo album lật trang.
- Tùy chỉnh tốc độ lật bằng
Duration.
5. Tổng kết
Với vài bước đơn giản, bạn đã có thể tạo hiệu ứng lật ảnh 3D Animation trong WPF. Đây là kỹ thuật thường được áp dụng trong các phần mềm trình chiếu ảnh, UI hiện đại.
👉 Bạn có muốn mình bổ sung phần code đổi ảnh trước/sau khi lật (kiểu album flip effect) để bài viết hoàn chỉnh hơn không?
Tải source code : Tại đây
